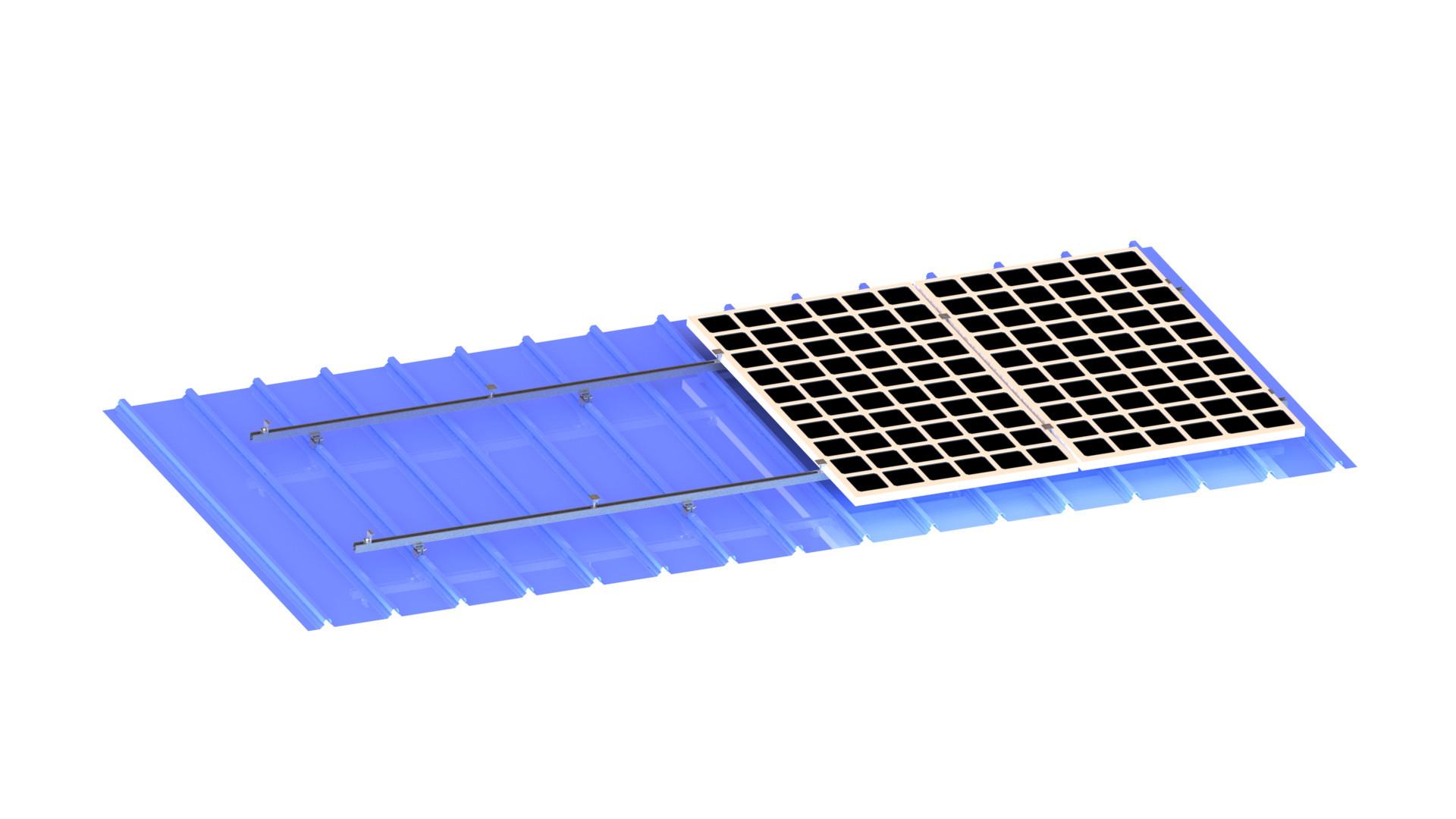

Trapezoid Metal Roof Mount system Commercial solar photovoltaic system
Except for L-feet, T-type clamp is also a choice for trapezoid
roof. The bottom of the clamp is same shape and angle with the roof
shape and angle, so they can match perfectly. And because the
contact area with the roof is relatively large, so the strength
will be better. The T-type clamps normally have two ways to connect
with the roof, one is tapping the screw on both sides, total using
4pcs, the advantage is no need to consider the beam position under
the roof; another fixing way is to use a long screw tapping on the
top, same as L-feet, this way is to connect the clamp with beam
under the roof instead of the roof tile.
T-type clamp is mainly used in China due to clamp and roof are one
- to - one correspondence, not universal. It means we have to know
the shape, size and angle of the roof accurately, and the slightest
deviation could make it impossible to install.
As a PV enterprise, Lipu Metal has been focusing on the R&D,
production and sales of solar mounting system and PV frames. Due to
Lipu Metal has a professional design and development team, so it
has obtained nearly 17 domestic and foreign product patents so far.
Professional production and QC team, which is strictly controlling
the quality from raw materials to finished products accordance with
the ISO9001 international quality system standards.
Lipu Metal can not only produce conventional PV mounting system
products and accessories, but also can offer the design which will
meet the customized needs. According to the situation of different
projects, Lipu Metal will provide matched mounting system
solutions. From the beginning of purchasing from Lipu Metal,
customers can enjoy a series of supporting services, including
field investigation, measurement & calculation, design,
installation support and after-sales service.
We respect roofs!
Technical Data
Product Name | Trapezoid Metal Roof Mounting system |
| Application | Trapezoid roof or corrugated roofs |
Material | High grade aluminum and A2-70 hardware |
Wind Load | Max 88 M/S |
Snow Load | Max 1.5 KN/M² |
Applicable Module | Framed or Frameless |
Module Orientation | Portrait or Landscape |
Standard | JISC8955:2017,GB50009-2012,GB50797-2012 |
Dimensions | Customized |
Warranty | 10 Years |
| Work life | 25 Years |
Installation steps
| 1. T clamp installation | 2. Rail installation | 3. Panel installation |
 |  |  |
Metal Roof Mount System Components
| Photo | Item No | Name | Product type | Product line |
 | HTD | T clamp | Clamps | MRA2 |
 | H4L0000A | Rail 35 | Racking | MRA |
 | HAC03 | Rail 35 joiner | Racking | MRA |
 | A735 | Mid clamp | Racking | All |
 | A835 | End clamp | Racking | All |
 | H6WL0000S | Earthing plate | Earthing | MRA |
 | ED02 | Earthing lug | Earthing | MRA |
