MRA2-TD Metal Roof Solar Mounting System Solar Panels On Houses
Solar Panels On Factory
The metal roof photovoltaic power generation project belongs to the
reconstruction project of the roof of existing buildings.
Therefore, the roof form of buildings, the structural form of
buildings, the layout form of photovoltaic arrays and the form of
photovoltaic modules themselves determine the diversity of roof
photovoltaic mounting system forms.
1. The form of metal roof and the structural form of buildings have
a great impact on the project cost of photovoltaic supports.
2. The higher the waterproof level of the roof is, the waterproof
layer of the roof will not be exposed.
3. The larger the live load of the roof, the better the overall
structure of the building and the roof with strong bearing
capacity, the lower the engineering cost of the photovoltaic
mounting system, and conversely, the higher the engineering cost.
4. According to the structural form, roof form and bearing capacity
of the original buildings with steel tiles, the actual power load
and installation capacity of each workshop are considered.
5. The main layout of the metal roof project is: lay flat along the
slope of the roof, use module as the layout form of the roof, and
set a certain angle on the north slope to make the north slope
layout consistent with the south slope.
As a PV enterprise, Lipu Metal has been focusing on the R&D,
production and sales of solar mounting system and PV frames. Due to
Lipu Metal has a professional design and development team, so it
has obtained nearly 17 domestic and foreign product patents so far.
Professional production and QC team, which is strictly controlling
the quality from raw materials to finished products accordance with
the ISO9001 international quality system standards.
Lipu Metal can not only produce conventional PV mounting system
products and accessories, but also can offer the design which will
meet the customized needs. According to the situation of different
projects, Lipu Metal will provide matched mounting system
solutions. From the beginning of purchasing from Lipu Metal,
customers can enjoy a series of supporting services, including
field investigation, measurement & calculation, design,
installation support and after-sales service.
Technical specification
| Installation place | T-type Tin roof |
| Fixed way | L-feet/ T-clamp |
| Installation angle | 0° |
| Standard wind | 35m/s |
| Max wind | 88m/s |
| Standard snow | 200mm |
| Max snow | 800mm |
| Design standard | JISC 8955:2017,GB 50009-2012,GB 50797-2012 |
| Main material | AL6005-T5 |
| Fastener material | SUS 304 |
Advantage
High-strength aluminum
Ultra light-weight design
Easy to install

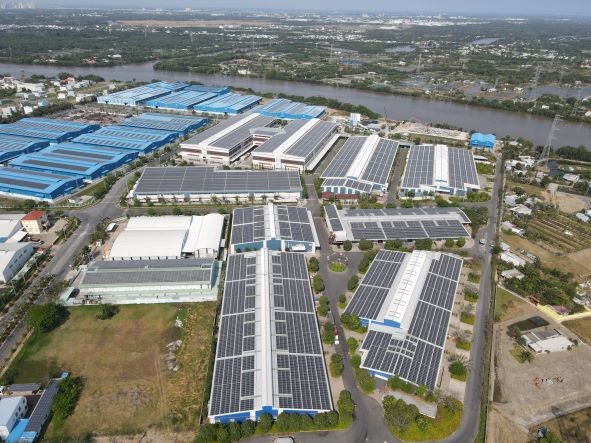

Project Photo reference
About LP Solar
• Lipu Metal (Jiangyin) Co., Ltd was previously called Leapton
Metal (Suzhou) Co., Ltd before;
• November 30th, 2018, Lipu Metal (Jiangyin) established, the
factory was relocated from Suzhou to Jiangyin;
• The new factory covers an area of about 21,300 square meters;
• The annual capacity of 500MW for mounting system and 500MW for
aluminum frames;
• Lipu Metal has obtained 17 product patents so far.
About Factory
| Raw material area | Material area | Cutting area | Producting area | Sampling area |
 |  |  |  |  |
| Pre-install area | Wahouse 1 | Packing area | Finish W.H. 2 | Loading area |
 |  |  |  |  |
About Certification and Test
