Aluminum Ground Mounting Structure Solar Power Station Solar
Photovoltaic System
The reason why aluminum alloy is more widely used in various fields
of life is that it has many advantages. Show as following:
1. Light weight
Compared with other iron supports, aluminum mounting structure are
lighter in weight because of the low density of aluminum.
2. Resistant to natural corrosion.
Anyone who studies chemistry must know that aluminum in the air can
react with oxygen to form a dense aluminum oxide film, thus
protecting the further reaction of aluminum.
3. Balanced voltage
In the conductive photovoltaic support system, sometimes some weak
current will be generated for various reasons, while the aluminum
mounting structure has good conductivity to balance the current and
prevent some accidents.
4. Easy to make
Because of its low density, aluminum profiles are very light and
can be easily processed into required specifications by sawing,
drilling, punching, folding and other processes. Therefore,
aluminum mounting structure are relatively easy to manufacture,
which is one of the reasons why they are widely used.
5. Low temperature resistance
The mounting structure made of aluminum alloy are very resistant to
low temperature because they contain aluminum metal, unlike other
steel structure, which are not resistant to low temperature during
the addition process, resulting in less hardness.
6. Environmental protection and easy recovery
After being discarded, the aluminum mounting structure will not
cause any pollution and is easy to recycle.
As a PV enterprise, Lipu Metal has been focusing on the R&D,
production and sales of solar mounting system and PV frames. Due to
Lipu Metal has a professional design and development team, so it
has obtained nearly 17 domestic and foreign product patents so far.
Professional production and QC team, which is strictly controlling
the quality from raw materials to finished products accordance with
the ISO9001 international quality system standards.
Lipu Metal can not only produce conventional PV mounting system
products and accessories, but also can offer the design which will
meet the customized needs. According to the situation of different
projects, Lipu Metal will provide matched mounting system
solutions. From the beginning of purchasing from Lipu Metal,
customers can enjoy a series of supporting services, including
field investigation, measurement & calculation, design,
installation support and after-sales service.
Technical Data
Product Name | Aluminum Ground Mounting structure |
| Application | Flat land |
Material | High grade aluminum and A2-70 hardware |
Wind Load | 88 M/S |
Snow Load | 2.0 KN/M² |
Applicable Module | Framed or Frameless |
Module Orientation | Portrait or Landscape |
Standard | JISC8955:2017, GB50009-2012, GB50797-2012 |
Dimensions | Customized |
Warranty | 10 Years |
| Work life | 25 Years |
Installation steps

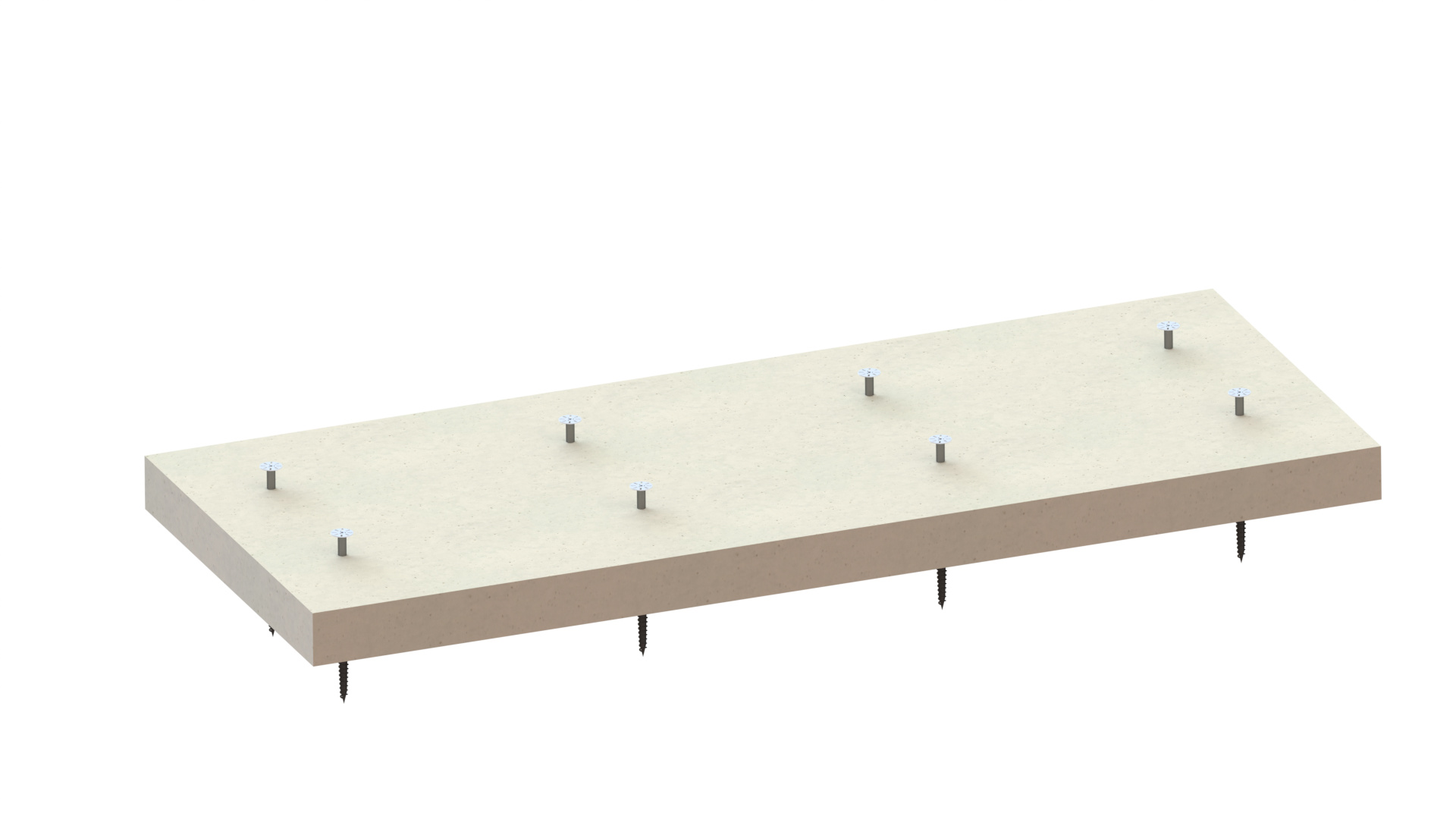

| 1. Pile installation | 2. Foudation installation | 3. Beam installation |
 |  |  |
| 4. Rail installation | 5. Panel installation | 6. Complete |
 |  |  |

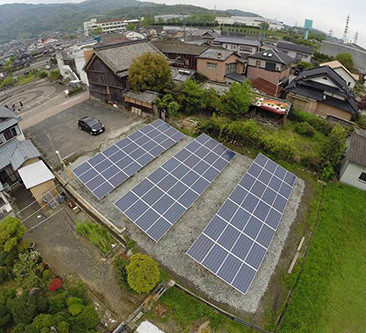

Project Photo Reference
