5° Flat Roof Mount System Ballast Mount Commercial Solar
Photovoltaic System
The ballast system is designed for PV mounting on commercial or
residential projects, it is made mainly of extruded aluminum
profiles, provides a light-weight solution for almost all flat-roof
solar power station construction, for example concrete, film,
asphalt roofing and so on, and allow flat roofs to tilt up to 5°.
The system is designed to be fixed quickly with a small number of
components using just one tool. Various configurations of solar
panels can be built for south, north and south roofs and east and
west roofs to achieve the best solution.
The system no need to anchor and damage the roof membrane, and
variable ballast weight allows for local wind rating requirements
to be meet on an individual basis.
As a PV enterprise, Lipu Metal has been focusing on the R&D,
production and sales of solar mounting system and PV frames. Due to
Lipu Metal has a professional design and development team, so it
has obtained nearly 17 domestic and foreign product patents so far.
Professional production and QC team, which is strictly controlling
the quality from raw materials to finished products accordance with
the ISO9001 international quality system standards.
Lipu Metal can not only produce conventional PV mounting system
products and accessories, but also can offer the design which will
meet the customized needs. According to the situation of different
projects, Lipu Metal will provide matched mounting system
solutions. From the beginning of purchasing from Lipu Metal,
customers can enjoy a series of supporting services, including
field investigation, measurement & calculation, design,
installation support and after-sales service.
Technical Data
Product Name | 5° Flat Roof Mounting system |
| Application | All kinds of flat roofs |
Material | High grade aluminum or galvanized steel and A2-70 hardware |
Wind Load | 60 M/S |
Snow Load | 1.2 KN/M² |
Applicable Module | Framed or Frameless |
Module Orientation | Portrait or Landscape |
Standard | JISC8955:2017, GB50009-2012, GB50797-2012 |
Dimensions | Customized |
Warranty | 10 Years |
| Work life | 25 Years |
Installation steps

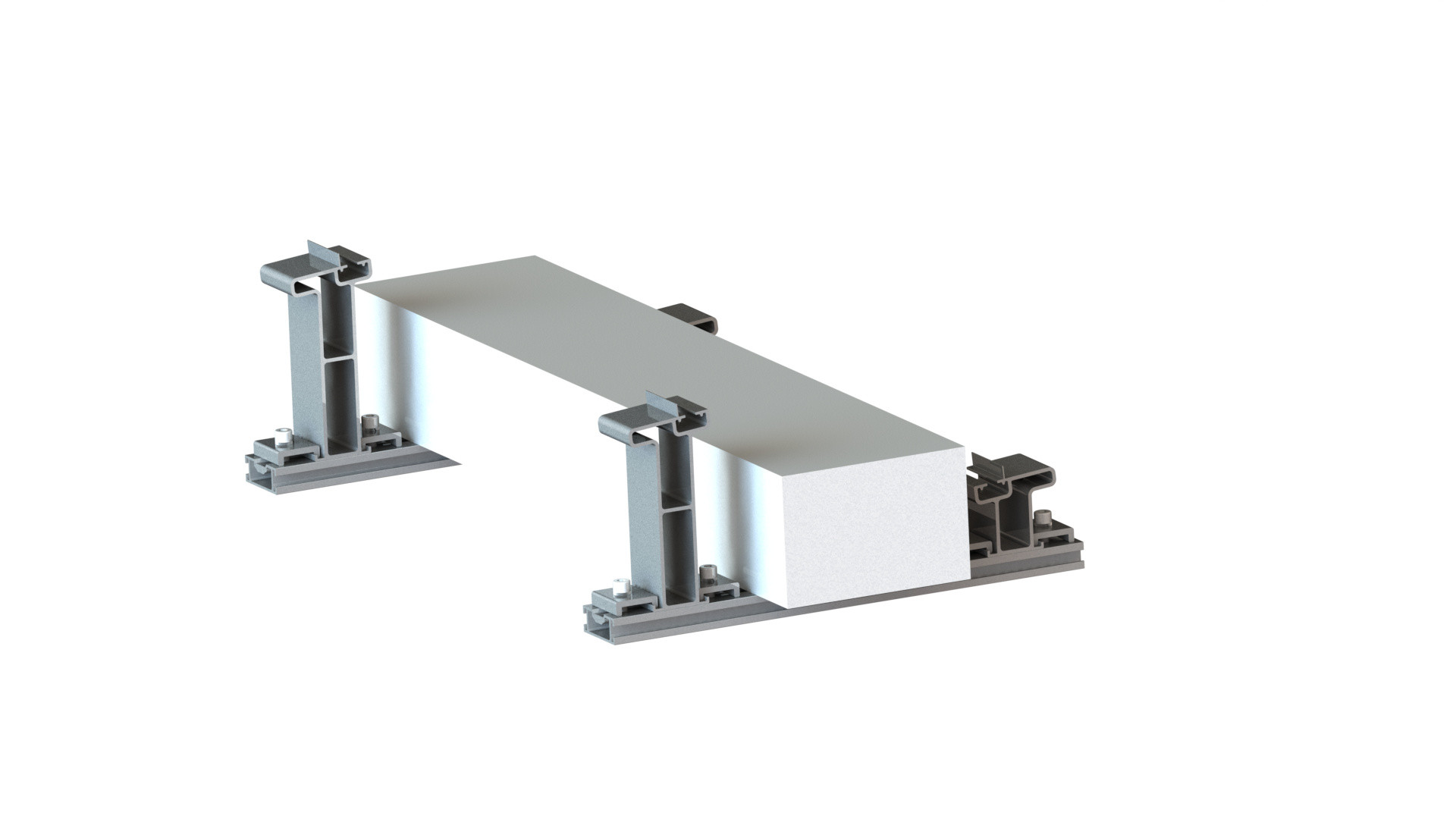

| Front leg installation | 5 degree Mid leg installation | Complete |
 |  |  |
Flat Roof Mount System Components
| Photo | Item No | Name | Product type | Product line |
 | CRA05F | 5° Front support | Racking | MRA3 |
 | CRA05M | 5° Mid support | Racking | MRA3 |
 | CRA05R | 5° Rear support | Racking | MRA3 |
 | A351 | Clip | Racking | MRA3 |
 | B735 | End clamp | Racking | ALL |
