Solar Panel Tripod Mount PV Mounting System With Windshield Folding
Tripod Structure
Ballast tripod mounting system is designed for solar energy
installation on concrete flat roof. The tilt angle can be
customized between 5 ° to 30 ° according to each item. The system
is based on concrete foundation and is also suitable for ground
mounted solar energy.
Ballast tripod mounting system uses concrete blocks as footings for
solar panel supports. It is used for flat roofs with high parapets
and has enough space for solar modules. The footing or concrete
base is directly on the roof without any penetration. The main
purpose of the concrete base is to ensure that the shelf system
remains intact even during the storm season. It ensures good
installation and does not cause water leakage on the roof. It also
improves the solar module and reduces the shading effect of the
high parapet.
The design of the rear windshield can make the wind resistance of
the whole structure stronger, and the aesthetics can be greatly
improved. The wind shield is fixed with the tripod instead of
directly fixed on the frame of the module, which makes the
adaptability of the module stronger, and will not damage the frame
of the module and affect the safety of the modules.
As a PV enterprise, Lipu Metal has been focusing on the R&D,
production and sales of solar mounting system and PV frames. Due to
Lipu Metal has a professional design and development team, so it
has obtained nearly 17 domestic and foreign product patents so far.
Professional production and QC team, which is strictly controlling
the quality from raw materials to finished products accordance with
the ISO9001 international quality system standards.
Lipu Metal can not only produce conventional PV mounting system
products and accessories, but also can offer the design which will
meet the customized needs. According to the situation of different
projects, Lipu Metal will provide matched mounting system
solutions. From the beginning of purchasing from Lipu Metal,
customers can enjoy a series of supporting services, including
field investigation, measurement & calculation, design,
installation support and after-sales service.
Technical Data
Product Name | Folding Tripod Structure With Windshield |
| Application | All kinds of flat roofs |
Material | AL6005-T5 and A2-70 hardware |
Wind Load | 40 M/S |
Snow Load | 0.8 KN/M² |
Applicable Module | Framed or Frameless |
Module Orientation | Portrait or Landscape |
Standard | JISC8955:2017, GB50009-2012, GB50797-2012 |
Dimensions | Customized |
Warranty | 10 Years |
| Work life | 25 Years |

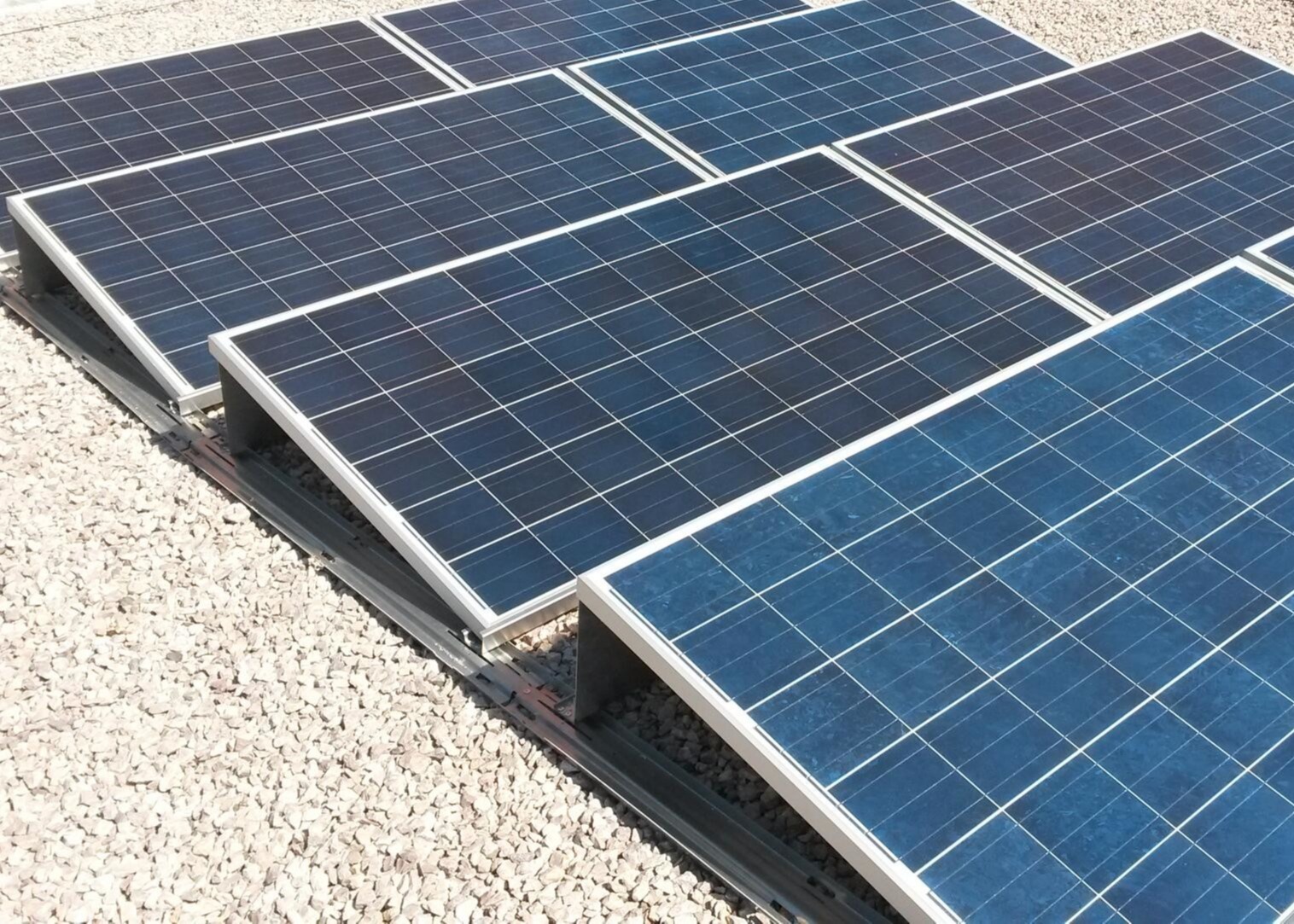

Project reference
