Back-to-back Flat Roof Mount System Ballast Mount Commercial Solar
Photovoltaic System
In order to save installation space and provide roof occupancy,
clients sometimes opt for a back-to-back style structure. This
allows for tight arrangement and no shading, especially used at low
latitudes near the equator.
According to the customer's request, LP SOLAR engineer team
designed the aluminum low center mounting structure based on cement
foundation. The concrete foundation can be adapted according to the
specifications common to the local market, and the height of the
structure can be adjusted according to the installation site of the
project. The same structure can be flexibly converted to 2 x N, 3 x
N or larger arrays as detail demands.
The highly pre-installed structure can effectively save labor costs
on the site, and 6005-T5 aluminum design makes the structure strong
and anticorrosion. Light weight makes it easy to carry up and down,
and can also reduce the load on the roof as more as possible.
After get the project demands from customers with wind load and
snow load, LP SOLAR will offer matched design and cost-effective
quotation to you.
As a PV enterprise, Lipu Metal has been focusing on the R&D,
production and sales of solar mounting system and PV frames. Due to
Lipu Metal has a professional design and development team, so it
has obtained nearly 17 domestic and foreign product patents so far.
Professional production and QC team, which is strictly controlling
the quality from raw materials to finished products accordance with
the ISO9001 international quality system standards.
Lipu Metal can not only produce conventional PV mounting system
products and accessories, but also can offer the design which will
meet the customized needs. According to the situation of different
projects, Lipu Metal will provide matched mounting system
solutions. From the beginning of purchasing from Lipu Metal,
customers can enjoy a series of supporting services, including
field investigation, measurement & calculation, design,
installation support and after-sales service.
We respect roofs!
Technical Data
Product Name | Back-to-back Flat Roof Mounting system |
| Application | All kinds of flat roofs |
Material | AL6005-T5 and A2-70 hardware |
Wind Load | 40 M/S |
Snow Load | 0.8 KN/M² |
Applicable Module | Framed or Frameless |
Module Orientation | Portrait or Landscape |
Standard | JISC8955:2017, GB50009-2012, GB50797-2012 |
Dimensions | Customized |
Warranty | 10 Years |
| Work life | 25 Years |

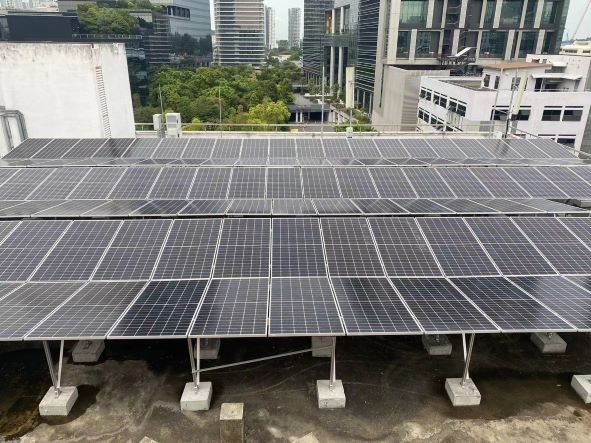

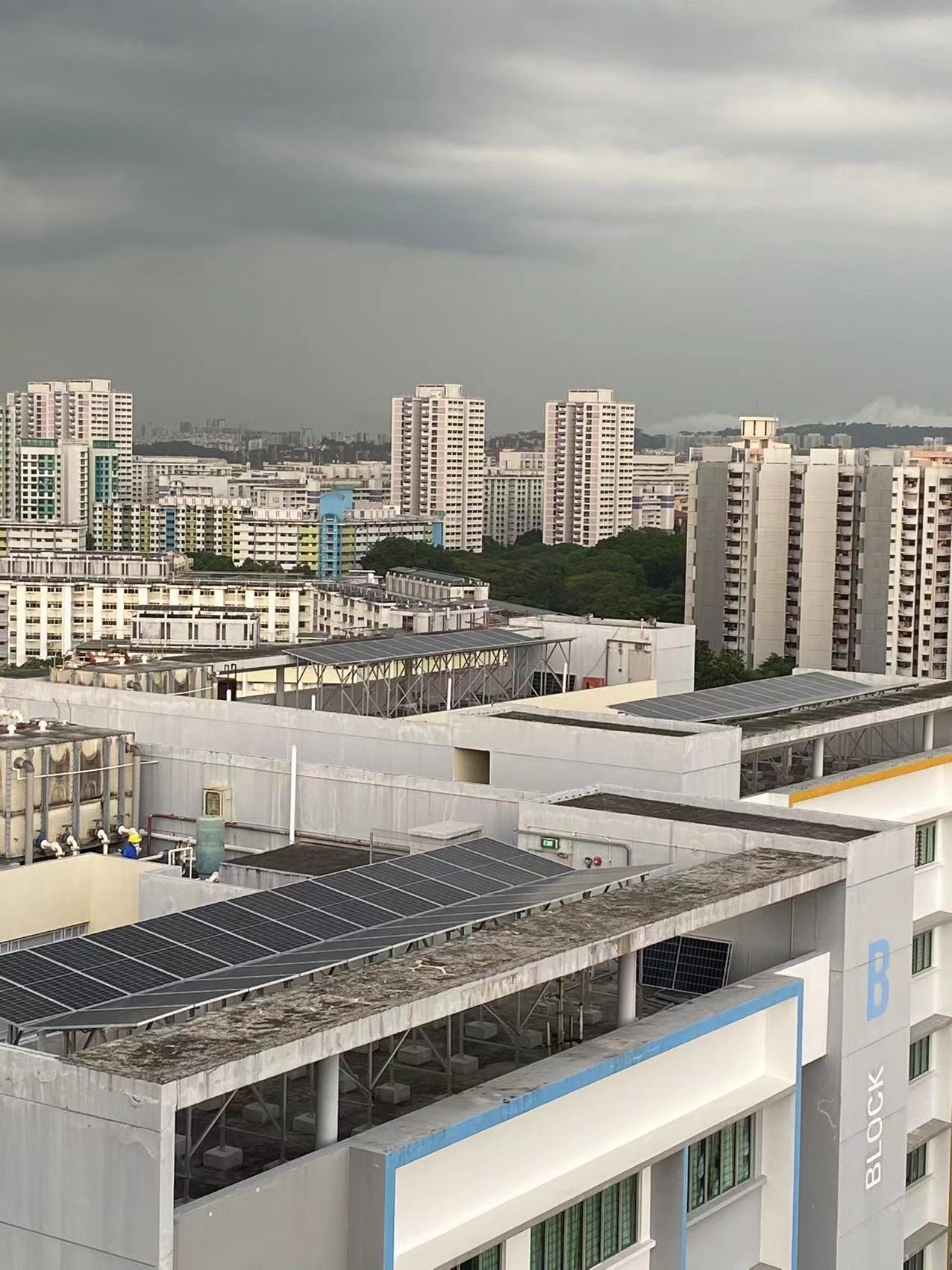

Project reference
