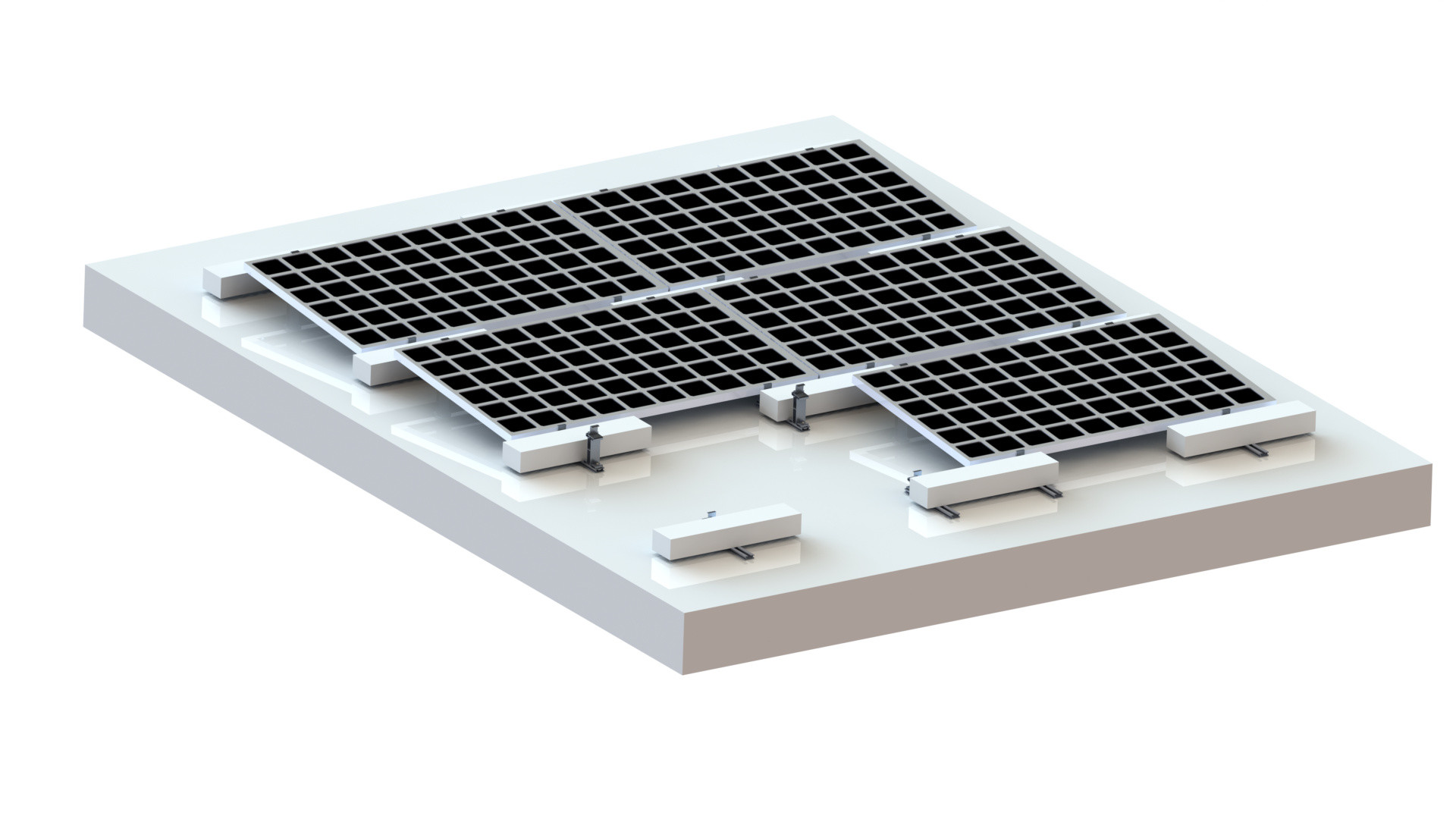

10° Flat Roof Mount System Ballast Mount Commercial Solar Photovoltaic System

Ballast mounting system no need rails, only adopts front leg, mid leg and rear leg to save cost both on installation and transportation. It is a type of solar panel mounting structure that can be expanded from one panel to any scale to maximize the use of flat rooftop. LP SOLAR engineer team will give you a technical suggestion for the size and weight of ballasts for your solar project.

FAQ

1. What is your PV modules dimension (Length x Width x Thickness)?

2. How many modules you are going to mount?

3. What is your planned panel layout?

4. What is the tilt angle you need? If you can’t sure, please offer your site’s longitude and latitude.

5. What is max wind speed in the past 25 years?

6. What is max snow load in the past 25 year?

7. Do you have any special requirement on flat roof clearance?

8. Whether you know the roof bearing per square meter? If yes, please offer the datas.

Please don’t hesitate to let us know if you have any requirements about the solar mounting system. LP SOLAR will provide appropriate solutions according to your specific requirements.

As a PV enterprise, Lipu Metal has been focusing on the R&D, production and sales of solar mounting system and PV frames. Due to Lipu Metal has a professional design and development team, so it has obtained nearly 17 domestic and foreign product patents so far. Professional production and QC team, which is strictly controlling the quality from raw materials to finished products accordance with the ISO9001 international quality system standards.

Lipu Metal can not only produce conventional PV mounting system products and accessories, but also can offer the design which will meet the customized needs. According to the situation of different projects, Lipu Metal will provide matched mounting system solutions. From the beginning of purchasing from Lipu Metal, customers can enjoy a series of supporting services, including field investigation, measurement & calculation, design, installation support and after-sales service.

We respect roofs!

Technical Data

Installation steps

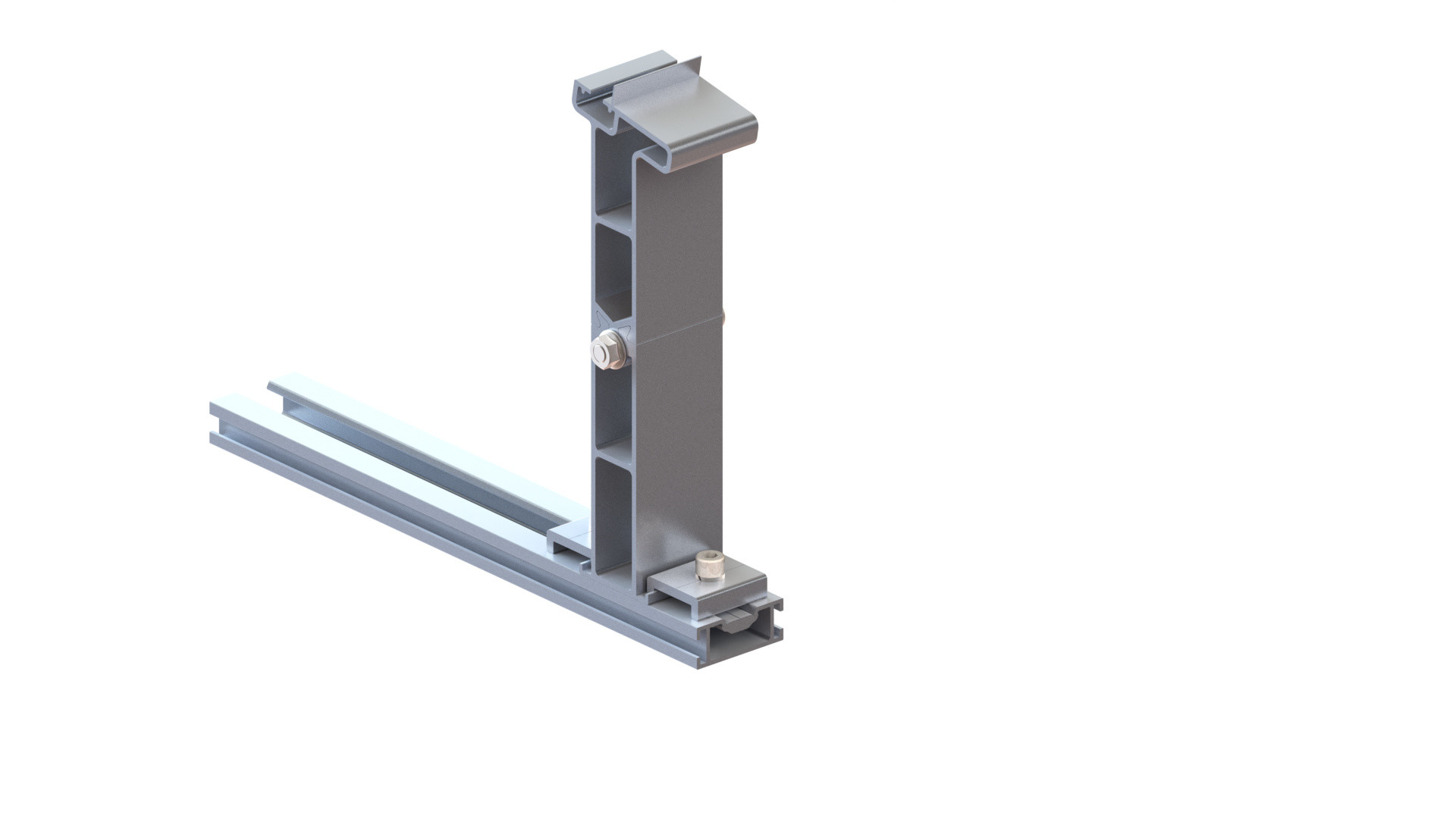

10 degree Front leg installation	10 degree Mid leg installation	Complete

Flat Roof Mount System Components

Photo	Item No	Name	Product type	Product line
	CRA10F	10° Front support	Racking	MRA3
	CRA10M	10° Mid support	Racking	MRA3
	CRA10R	10° Rear support	Racking	MRA3
	A351	Clip	Racking	MRA3
	B735	End clamp	Racking	ALL
