Aluminum Flat Roof Mount System Ballast Mount Commercial Solar
Photovoltaic System
In some flat roof projects, due to the need to consider the shadow
of the parapet or obstacles, as well as snow load and other
factors, cement base will be used as the foundation to build the
solar mounting system on the flat roof in reference to the style of
the ground structure.
The material selection of the structure is mainly divided into
aluminum and steel. In China, considering the cost, most customers
will choose steel structure. But for some projects which are close
to smokestacks emitting acid gases, then customers will choose
aluminum structure. Generally speaking, the later maintenance of
aluminum structure will be easier than that of steel structure.
Most concrete roofs have a certain inclination angle, generally 2
degree and no more than 5 degree, so the mounting system of the
concrete roof will need to be adjustable, so that it can be
adjusted according to the actual situation of the roof during
on-site construction.
In addition, when calculating the size and weight of the cement
foundation, also must consider the bearing capacity of the roof.
The unit weight and total weight of the cement foundation shall not
exceed the allowable value of the roof. If the bearing capacity of
the roof is not large enough, it is necessary to consider other
design or reduce the installed capacity of the project.
As a PV enterprise, Lipu Metal has been focusing on the R&D,
production and sales of solar mounting system and PV frames. Due to
Lipu Metal has a professional design and development team, so it
has obtained nearly 17 domestic and foreign product patents so far.
Professional production and QC team, which is strictly controlling
the quality from raw materials to finished products accordance with
the ISO9001 international quality system standards.
Lipu Metal can not only produce conventional PV mounting system
products and accessories, but also can offer the design which will
meet the customized needs. According to the situation of different
projects, Lipu Metal will provide matched mounting system
solutions. From the beginning of purchasing from Lipu Metal,
customers can enjoy a series of supporting services, including
field investigation, measurement & calculation, design,
installation support and after-sales service.
Technical Data
Product Name | Aluminum Flat Roof Mounting system |
| Application | All kinds of flat roofs |
Material | High grade aluminum and A2-70 hardware |
Wind Load | 60 M/S |
Snow Load | 1.2 KN/M² |
Applicable Module | Framed or Frameless |
Module Orientation | Portrait or Landscape |
Standard | JISC8955:2017, GB50009-2012, GB50797-2012 |
Dimensions | Customized |
Warranty | 10 Years |
| Work life | 25 Years |

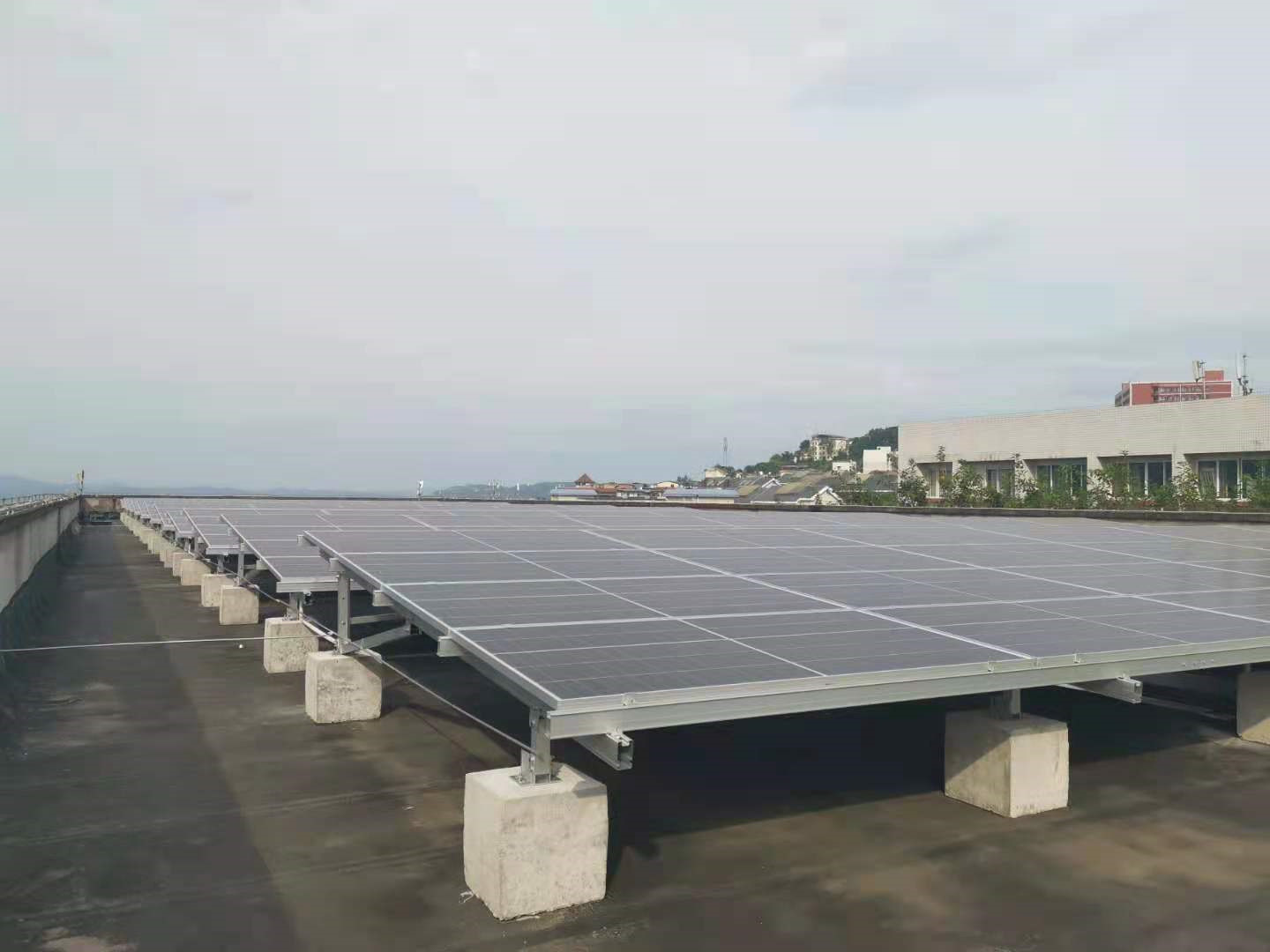

Project reference
