Fixed Tile Hook Tile Roof Mount System Tile Mount Household Solar
Photovoltaic System
Glazed tile roofing refers to roofing with glazed tiles, generally,
we call Song style and Ming style glazed tile roofing. In ancient
Chinese architecture, there are many kinds of glazed tiles used in
glazed tile roof, with complicated names, varieties and various
uses: some are used for drainage or leak-proof roof, some form
ridge materials, and some are purely decorative.
Hooks are the structural foundation of all tile roof solar system.
The iconic curve of the hooks helps them resist swelling, the
product resists buckling, and safely and effectively transfer loads
into the building structure.
The tiles are of different shapes and heights, and the beams under
the roof are mostly made of wood or cement, for different
installation requirements, we can provide the corresponding hooks
and fasteners. The whole system is composed of high-strength
aluminum and stainless steel, which with good corrosion resistance
and beauty.

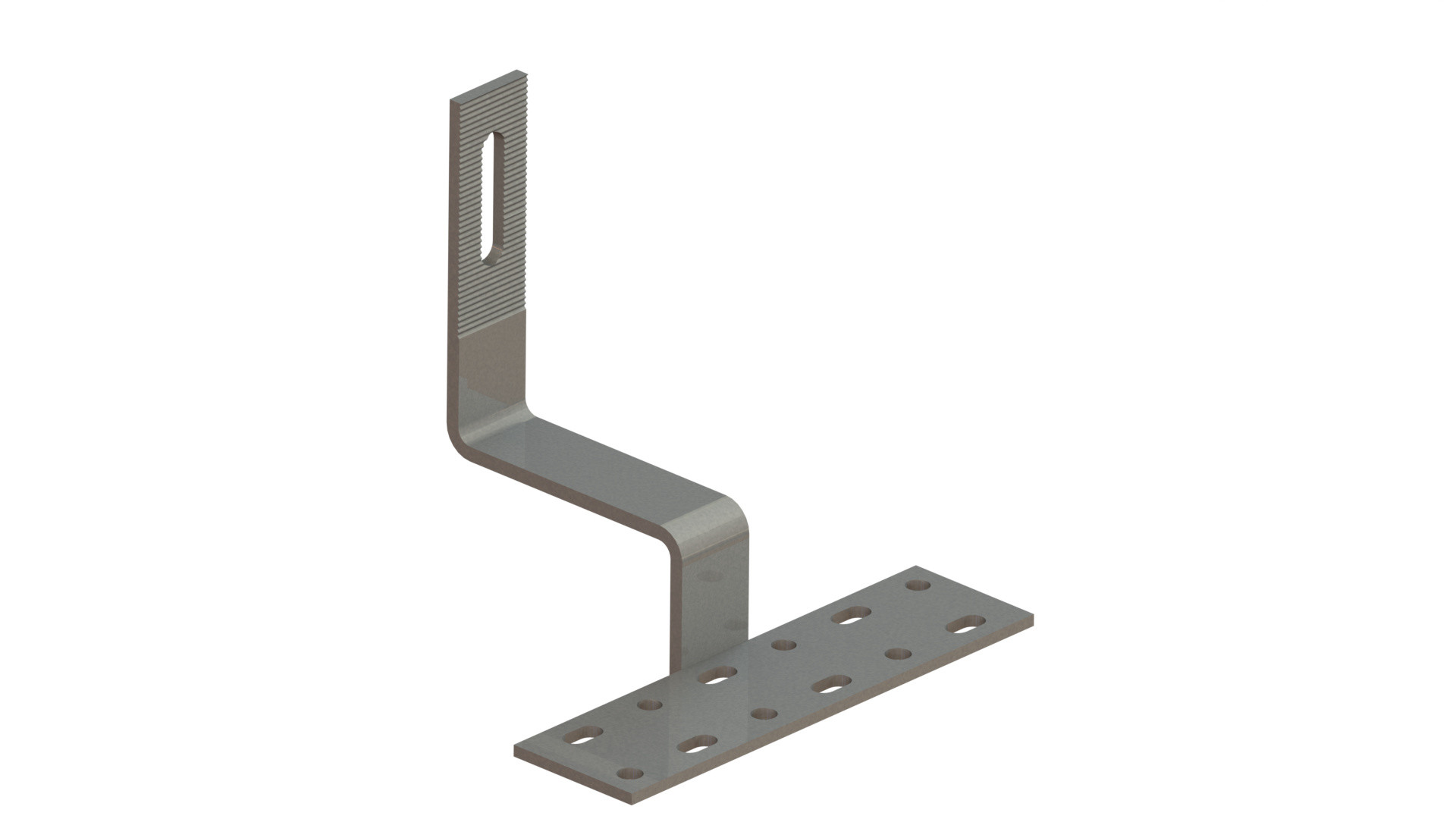

Fixed hook is the first to use, and also is currently one of the
most frequently used hooks on the market. It mainly used the tile
height less than 45mm, but the height can be also customized as
25mm, 35mm, 75mm, 95mm and so on.
Feature of photovoltaic tile roof hooks
1. Horizontal or vertical orientation array supports;
2. Fit for sloped rooftop mounting location;
3. 10 years warranty and 25 years life span designed;
4. Many holes on the bottom plate, for wooden or concrete.
Technical Data
Product Name | Fixed Tile Hook Tile Roof Mounting system |
| Application | Tile roofs |
Material | High grade aluminum and A2-70 hardware |
Wind Load | Max 88 M/S |
Snow Load | Max 1.5 KN/M² |
Applicable Module | Framed or Frameless |
Module Orientation | Portrait or Landscape |
Standard | JISC8955:2017, GB50009-2012, GB50797-2012 |
Dimensions | Customized |
Warranty | 10 Years |
| Work life | 25 Years |
Installation steps
| 1. Hook installation | 2. Rail installation | 3. Panel installation |
 | |  |
Tile Roof Mount System Components
| Photo | Item No | Name | Product type | Product line |
 | A8011 | Hook | Hook | MRA1 |
 | 49L0000A | Rail 50 | Racking | MRA |
 | AC02 | Rail 50 joiner | Racking | MRA |
 | A735 | Mid clamp | Racking | All |
 | A835 | End clamp | Racking | All |
 | H6WL0000S | Earthing plate | Earthing | MRA |
 | ED02 | Earthing lug | Earthing | MRA |
