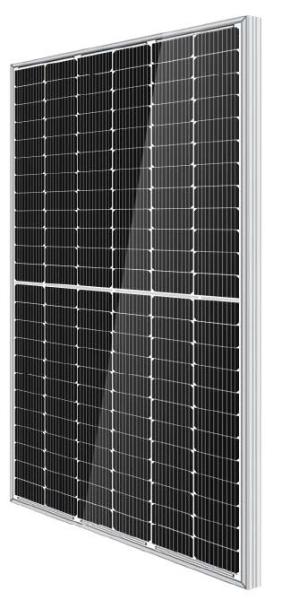

    530-550w Monocrystalline Solar Module 182 Mono Crystalline

    Monocrystalline PV Module Solar Panel 182*182-M-72-MH 530W~550W


    Feature

    MBB Cell

    New circuit design, lower internal current, lower internal resistance loss.


    Higher Output Power
    Module adopts 144 pcs of 182*182mm half cells, the maximum power can reach 550W.


    Harsh Environmental Adaptability
    Strict salt spray and ammonia corrosion test by TUV Nord.


    Low Light Features
    Higher performance under low light environment.


    PID Protection
    Ensure the attenuation probability caused by PID phenomenon is minimized


    Load Capacity
    Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa done by TUV Nord.


    Mechanical Diagrams

    Power530W535W540W545W550W
    Open Circuit Voltage49.00V49.20V49.40V49.60V49.80V
    Short Circuit Current13.76A13.81A13.87A13.93A13.99A
    Maximun Power Voltage40.80V41.00V41.20V41.40V41.60V
    Maximum Power Current13.00A13.05A13.11A13.17A13.23A
    Module Efficiency20.51%20.70%20.90%21.09%21.28%
