Aluminum Ground Mounting System Solar Power Station Solar Photovoltaic System

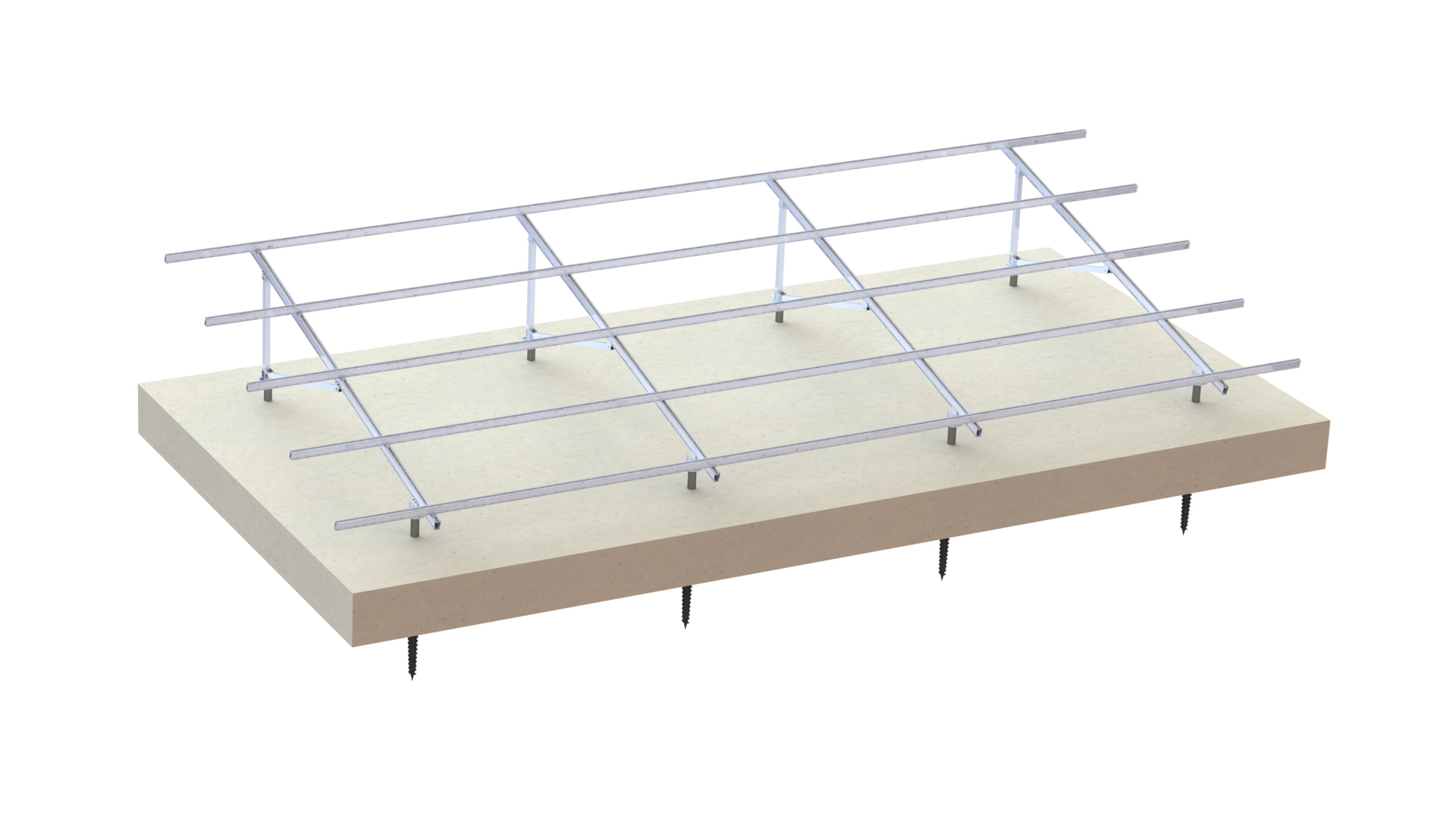

The double column mounting system consists of four main parts, including front legs and rear legs, rails, beam units, ground screws or concrete foundation. With the design of double columns, it performs better than the single column mounting system on the aspect of resisting strong wind and earthquake resistant capability. Using aluminum 6005-T5 brings the double column mounting structure a good performance of corrosion resistance and beauty, and is popular in coastal cities, for example Japan, Philippines and so on. Additionally, this kind of system is very durable with around 25 years work life as forecast.

The column unit and beam unit are all installed in advance before delivery, this can effectively reduce the construction time and difficulty on site. The construction personnel only need to open the unit and then fix the bolts to complete the installation.

LP SOLAR engineer team will make the solution according to detail site situation and projects’ information, for example wind load, snow load, structure angle, min height and so on. Structure is a customized products which need to be designed one-to-one, so when you need the suppliers to provide a detailed and accurate solution, please provide sufficient project information and any other requirements that you think necessary.

Technical Data

Installation steps

1. Pile installation	2. Column installation	3. Beam installation
4. Rail installation	5. Panel installation	6. Complete

Aluminum Ground Mount System Components

Photo	Item No	Name	Product type	Product line
	G0000F/R	Column unit	Racking	MGA
	GZL0000A	Beam	Racking	MGA
	44L0000A	Rail 65	Racking	MGA
	5ZL0000A	Rear tie	Racking	MGA
	A351	Clip	Racking	MGA
	A735	End clamp	Racking	ALL
	A835	Mid clamp	Racking	ALL
