Common Rail Steel Ground Mounting System Solar Power Station Solar
Photovoltaic System
Steel ground mount solar mounting structure is workable for
different wind load and snow load. No welding or cutting on site.
The structure is installed with bolts and nuts.

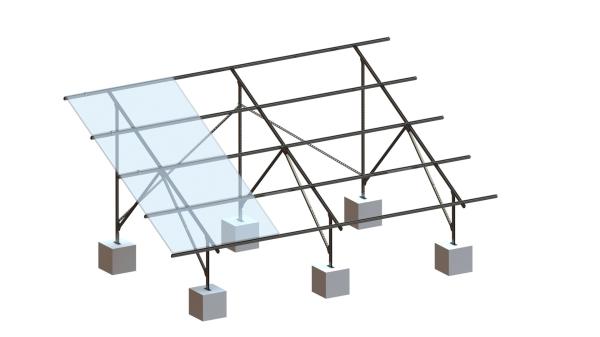

And when solar modules orientation is landscape, the common rail
design will be suitable. Normal layout is 3*n, 4*n or more. As the
name suggests, common rail design means that there are only three
rails for two solar modules, and when the modules are placed
vertically, there will be two rails under each module. Using a
special customized support plate can solve the problem of
insufficient rail width. This structure can effectively save the
amount of rail and greatly reduce the overall cost of the whole
structure.
Solar mounting system is made up of a lot of standard products but
with different requirements, LP SOLAR engineer team can offer
customized design according to customers’ actual project site
conditions and use demands, therefore, if you don't know what kind
of structure to choose, please don’t hesitate to let us know, just
need to offer the normal project information such as panel size,
wind and snow load, angle, layout, height, and then we can provide
you with cost-effective solutions.
As a PV enterprise, Lipu Metal has been focusing on the R&D,
production and sales of solar mounting system and PV frames. Due to
Lipu Metal has a professional design and development team, so it
has obtained nearly 17 domestic and foreign product patents so far.
Professional production and QC team, which is strictly controlling
the quality from raw materials to finished products accordance with
the ISO9001 international quality system standards.
Lipu Metal can not only produce conventional PV mounting system
products and accessories, but also can offer the design which will
meet the customized needs. According to the situation of different
projects, Lipu Metal will provide matched mounting system
solutions. From the beginning of purchasing from Lipu Metal,
customers can enjoy a series of supporting services, including
field investigation, measurement & calculation, design,
installation support and after-sales service.
Technical Data
Product Name | Common Rail Steel Ground Mounting system |
| Application | Land |
Material | Steel and A2-70 hardware |
Wind Load | 60 M/S |
Snow Load | 1.0 KN/M² |
Applicable Module | Framed or Frameless |
Module Orientation | Portrait |
Standard | JISC8955:2017, GB50009-2012, GB50797-2012 |
Dimensions | Customized |
Warranty | 10 Years |
| Work life | 25 Years |
Advantage
- Strong compatibility
- High cost performance
- High-strength steel
Project Photo Reference
